Software Verification in Lean

Lecture 4 of 4
Leo de Moura
Senior Principal Applied Scientist, AWS
Chief Architect, Lean FRO

Marktoberdorf Summer School | August 2026

Recap

Lecture 1: propositions are types; proofs are terms; the kernel checks everything.
Lecture 2: inductive types, type classes, macros; proofs about programs; generalize the invariant.
Lecture 3: simp, grind, bv_decide; AI writes proofs, the kernel checks them.

Today: put the pieces together — a verification framework, built inside Lean, and the engineering required to make one scale.

Today

Verification frameworks in industrial use, all built as Lean libraries.
A verification condition generator for a small imperative language — with a soundness theorem.
The same programs, shallowly embedded; symbolic execution as a metaprogram.

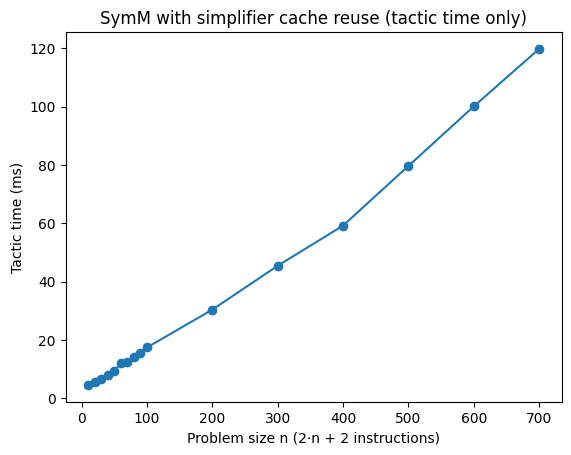

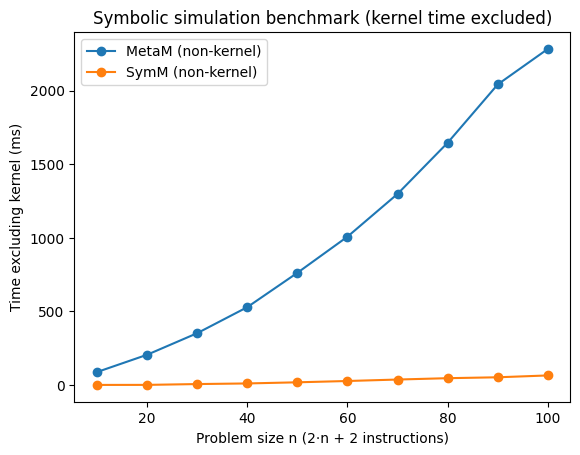

Scalability: where the time goes, and the SymM framework.

Verification Frameworks as Lean Libraries

From the course abstract:

Lean's extensibility enables the construction of entire domain-specific verification frameworks, including custom specification languages, proof strategies, and automation pipelines, all within Lean itself, with no need for external tools or trusted code generators.

SampCert (AWS): Verified Differential Privacy

An open-source Lean library of formally verified differential privacy primitives.

The verified implementation replaced a previous one — and is twice as fast.
The correctness arguments need real mathematics: Fourier analysis, number theory, topology — supplied by Mathlib.
Deployed in AWS Clean Rooms Differential Privacy.
PLDI 2025: "Verified Foundations for Differential Privacy."

"I started using Lean because of Mathlib, but I realized that Lean isn't just an excellent proof assistant, it's also a very pleasant and efficient programming language with a great ecosystem." — Jean-Baptiste Tristan

Waimea (AWS): a Verified Compiler for Trainium

CompCert-style verified compiler for AWS Trainium, Amazon's AI accelerator. ~500,000 lines of Lean.

The ISA specification changes several times per week — not a fixed target like x86.
The Lean model doubles as a simulator shared by hardware and verification engineers.
Used to find hardware and simulator bugs, and to prove the correctness of hardware optimizations.
Long-term goal: end-to-end compilation with a semantics-preservation proof.

Kraken (Google): x64 Semantics in Lean

Kraken: a formal model of x64 for verifying sequential machine code. Jonathan Protzenko and Andres Erbsen; started after the Lean@Google hackathon, December 2025.

This lecture's architecture, applied to an instruction set: embed the machine language, give it a semantics, verify against it.
The semantics is designed for proof automation, with lessons from Bedrock2: the interpreter either computes a weakest precondition or a final state.
x64 today; arm64 in progress; RISC-V on the roadmap.
Status: pre-alpha — the tactic layer still needs Lean-side support to prove non-trivial programs. Andres returns in the scalability section, where exactly that Lean-side support is the subject.

Veil: Verified Distributed Protocols

Veil: verification of distributed protocols, built on Lean via metaprogramming. Pîrlea, Gladshtein, Kinsbruner, Zhao, Sergey.

Push-button verification through SMT (cvc5/Z3) for decidable fragments; full interactive Lean proofs when automation falls short.
Foundational: Veil's VC generator is proven sound with respect to the specification language semantics.
16 distributed protocol case studies; all 16 verified (Ivy failed on 2); 87.5% verified in under 15 seconds.

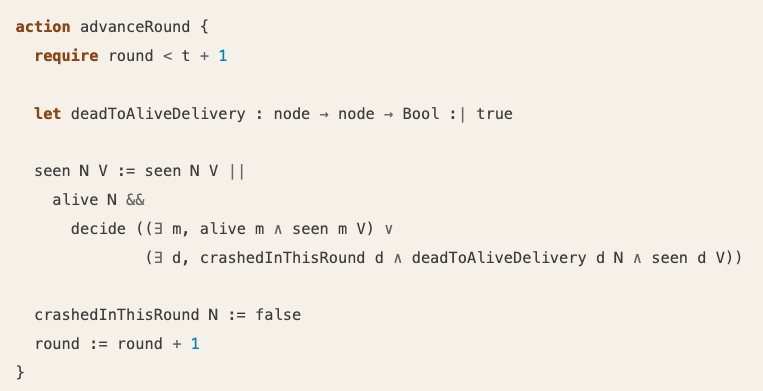

Veil: ring leader election

Strata (AWS): Language Syntax and Semantics

Strata: an extensible platform for formalizing language syntax and semantics. Open source.

Organizing idea: dialects (inspired by MLIR) — composable building blocks for modeling programming constructs.
Pipeline example: Python/Java/JavaScript → Laurel → Strata Core → VC generation → SMT.
The dialect definition mechanism is an embedded DSL in Lean — the macro machinery from Lecture 2, at industrial scale.

A Common Structure

Each of these systems has the same architecture:

Embed the object language (Rust, a protocol language, an ISA) in Lean.
Give it a semantics — a function or an inductive relation.
Compute verification conditions.
Discharge them — simp, grind, bv_decide, interactive proofs.

Signal Shot — verifying the Signal protocol and its Rust implementation (Signal, the Beneficial AI Foundation, and the Lean FRO) — is assembling exactly these components: Aeneas, Mathlib and CSLib, grind and SymM, AI.

A Small Verifier, End to End

The code is in the exercises project.

The Language: Imp

def Assertion : Type := State → Prop

inductive Stmt where
  | skip
  | assign  (x : String) (e : Expr)
  | seq     (s₁ s₂ : Stmt)
  | ite     (c : BExpr) (s₁ s₂ : Stmt)
  | whileDo (c : BExpr) (inv : Assertion) (body : Stmt)

State, its get/set API and notation, and the expression evaluator are Lecture 2's, unchanged; BExpr adds boolean tests. Only Stmt is new.
whileDo carries an invariant annotation inv — input for the verifier. The semantics will ignore it.

The `[Imp| ...]` Grammar

declare_syntax_cat impStmt

syntax ident " := " term "; " : impStmt
syntax "if" " (" term ")" " {" impStmt* "}" " else" " {" impStmt* "}" : impStmt
syntax "while" " (" term ")" ppLine " {" impStmt* "}" : impStmt
syntax "while" " (" term ")" " invariant" " (" term ")" ppLine " {" impStmt* "}" : impStmt
syntax "[Imp|" impStmt* "]" : term

open Lean in
macro_rules
  | `([Imp| ]) => `(Stmt.skip)
  | `([Imp| $x:ident := $e:term;]) => `(Stmt.assign $(quote x.getId.toString) [Expr| $e])
  | `([Imp| if ($c) { $ts* } else { $es* }]) => `(Stmt.ite [BExpr| $c] [Imp| $ts*] [Imp| $es*])
  | `([Imp| while ($c) { $bs* }]) => `(Stmt.whileDo [BExpr| $c] (fun _ => True) [Imp| $bs*])
  | `([Imp| while ($c) invariant ($I) { $bs* }]) => `(Stmt.whileDo [BExpr| $c] $I [Imp| $bs*])
  | `([Imp| $s $ss*]) => `(Stmt.seq [Imp| $s] [Imp| $ss*])

declare_syntax_cat creates a new syntactic category: statements are not terms — they get their own grammar, and impStmt* means "a sequence of them". Lecture 2's [Expr| extended the term grammar; a statement language needs its own.
[Imp| ...] is the bridge back: a term whose contents are parsed with the statement grammar. ([Expr| and [BExpr| are analogous, and hidden here.)

Concrete Syntax

def factorial : Stmt := [Imp|
  n := 10;
  r := 1;
  while (0 < n) {
    r := r * n;
    n := n - 1;
  }
]

After elaboration the quotation is gone: factorial : Stmt, ordinary data built from seq, assign, and whileDo.
σ⟦x⟧/σ⟦x := v⟧ are Lecture 2's notation. Unexpanders print states and programs back in the same syntax — goals stay readable while stepping.

Operational Semantics

inductive BigStep : State → Stmt → State → Prop where
  | skip :
      BigStep σ .skip σ
  | assign :
      BigStep σ (.assign x e) (σ.set x (e.eval σ))
  | seq (h₁ : BigStep σ s₁ σ') (h₂ : BigStep σ' s₂ σ'') :
      BigStep σ (.seq s₁ s₂) σ''
  | ifTrue (hc : c.eval σ = true) (h : BigStep σ s₁ σ') :
      BigStep σ (.ite c s₁ s₂) σ'
  | ifFalse (hc : c.eval σ = false) (h : BigStep σ s₂ σ') :
      BigStep σ (.ite c s₁ s₂) σ'
  | whileTrue (hc : c.eval σ = true) (hbody : BigStep σ body σ')
      (hrest : BigStep σ' (.whileDo c inv body) σ'') :
      BigStep σ (.whileDo c inv body) σ''
  | whileFalse (hc : c.eval σ = false) :
      BigStep σ (.whileDo c inv body) σ

BigStep σ s σ': executing s from state σ terminates in σ'.
One constructor per rule; derivations are finite, so the relation captures terminating runs.
The invariant annotation is ignored — it has no semantic content.

Executing Programs

def Stmt.runGet (s : Stmt) (x : String) (fuel : Nat := 1000) : Option Int :=
  (s.run State.init fuel).map (·.get x)

#evalsome 3628800 factorial.runGet "r"
some 3628800
#guard factorial.runGet "r" = some 3628800
#guard factorial.runGet "n" = some 0

A fuel-bounded interpreter (Lecture 2's pattern for possibly nonterminating recursion) makes programs executable.
#guard tests before proofs, as always.

The Interpreter, Verified

#checkStmt.run_mono {s : Stmt} {σ : State} {fuel : Nat} {σ' : State} {fuel' : Nat} :
  s.run σ fuel = some σ' → fuel ≤ fuel' → s.run σ fuel' = some σ' Stmt.run_mono
Stmt.run_mono {s : Stmt} {σ : State} {fuel : Nat} {σ' : State} {fuel' : Nat} :
  s.run σ fuel = some σ' → fuel ≤ fuel' → s.run σ fuel' = some σ'
#checkStmt.run_sound {s : Stmt} {σ : State} {fuel : Nat} {σ' : State} : s.run σ fuel = some σ' → BigStep σ s σ' Stmt.run_sound
Stmt.run_sound {s : Stmt} {σ : State} {fuel : Nat} {σ' : State} : s.run σ fuel = some σ' → BigStep σ s σ'
#checkStmt.run_complete {σ σ' : State} {s : Stmt} (h : BigStep σ s σ') : ∃ fuel, s.run σ fuel = some σ' Stmt.run_complete
Stmt.run_complete {σ σ' : State} {s : Stmt} (h : BigStep σ s σ') : ∃ fuel, s.run σ fuel = some σ'
#checkBigStep.deterministic {σ σ₁ σ₂ : State} {s : Stmt} (h₁ : BigStep σ s σ₁) (h₂ : BigStep σ s σ₂) : σ₁ = σ₂ BigStep.deterministic
BigStep.deterministic {σ σ₁ σ₂ : State} {s : Stmt} (h₁ : BigStep σ s σ₁) (h₂ : BigStep σ s σ₂) : σ₁ = σ₂

Sound: whatever the interpreter computes, the semantics derives. Complete: whatever the semantics derives, some fuel computes. Together: run and BigStep describe the same language, so every #guard on the previous slide is a theorem about the semantics.
All of it is in the exercises, with hints; fuel monotonicity is the workhorse lemma.

Specifications: Hoare Triples

def Triple (P : Assertion) (s : Stmt) (Q : Assertion) : Prop :=
  ∀ σ σ', P σ → BigStep σ s σ' → Q σ'

def Stmt.wlp (s : Stmt) (Q : Assertion) : Assertion :=
  fun σ => Triple (· = σ) s Q

theorem wlp_iff (s : Stmt) (Q : Assertion) (σ : State)
    : s.wlp Q σ ↔ ∀ σ', BigStep σ s σ' → Q σ' := bys:StmtQ:Assertionσ:State⊢ s.wlp Q σ ↔ ∀ (σ' : State), BigStep σ s σ' → Q σ'
  unfold Stmt.wlp Triples:StmtQ:Assertionσ:State⊢ (∀ (σ_1 σ' : State), (fun x => x = σ) σ_1 → BigStep σ_1 s σ' → Q σ') ↔ ∀ (σ' : State), BigStep σ s σ' → Q σ'; simps:StmtQ:Assertionσ:State⊢ (∀ (σ_1 σ' : State), σ_1 = σ → BigStep σ_1 s σ' → Q σ') ↔ ∀ (σ' : State), BigStep σ s σ' → Q σ'; constructormps:StmtQ:Assertionσ:State⊢ (∀ (σ_1 σ' : State), σ_1 = σ → BigStep σ_1 s σ' → Q σ') → ∀ (σ' : State), BigStep σ s σ' → Q σ'mprs:StmtQ:Assertionσ:State⊢ (∀ (σ' : State), BigStep σ s σ' → Q σ') → ∀ (σ_1 σ' : State), σ_1 = σ → BigStep σ_1 s σ' → Q σ'
  ·mps:StmtQ:Assertionσ:State⊢ (∀ (σ_1 σ' : State), σ_1 = σ → BigStep σ_1 s σ' → Q σ') → ∀ (σ' : State), BigStep σ s σ' → Q σ' intro h σ'mps:StmtQ:Assertionσ:Stateh:∀ (σ_1 σ' : State), σ_1 = σ → BigStep σ_1 s σ' → Q σ'σ':State⊢ BigStep σ s σ' → Q σ';
    exact h σ σ' rflAll goals completed! 🐙
  ·mprs:StmtQ:Assertionσ:State⊢ (∀ (σ' : State), BigStep σ s σ' → Q σ') → ∀ (σ_1 σ' : State), σ_1 = σ → BigStep σ_1 s σ' → Q σ' intro h σ' σ'' he hbmprs:StmtQ:Assertionσ:Stateh:∀ (σ' : State), BigStep σ s σ' → Q σ'σ':Stateσ'':Statehe:σ' = σhb:BigStep σ' s σ''⊢ Q σ''
    subst σ'mprs:StmtQ:Assertionσ:Stateh:∀ (σ' : State), BigStep σ s σ' → Q σ'σ'':Statehb:BigStep σ s σ''⊢ Q σ''
    apply h σ'' hbAll goals completed! 🐙

theorem Triple_iff_wlp (P : Assertion) (s : Stmt) (Q : Assertion)
    : Triple P s Q ↔ ∀ σ, P σ → s.wlp Q σ := byP:Assertions:StmtQ:Assertion⊢ Triple P s Q ↔ ∀ (σ : State), P σ → s.wlp Q σ
  simp [wlp_iff, Triple]P:Assertions:StmtQ:Assertion⊢ (∀ (σ σ' : State), P σ → BigStep σ s σ' → Q σ') ↔ ∀ (σ : State), P σ → ∀ (σ' : State), BigStep σ s σ' → Q σ'; grindAll goals completed! 🐙

Partial correctness: if P holds initially and s terminates, then Q holds finally.
s.wlp Q is the safe region of s — every terminating run from σ establishes Q. This is Dijkstra's weakest liberal precondition.
Not a new logic: Triple is a definition, and the "rules" of Hoare logic will be ordinary theorems about it.

The Rules Are Theorems

theorem Triple.skip (Q : Assertion) : Triple Q .skip Q := byQ:Assertion⊢ Triple Q Stmt.skip Q
  intro σ σ' h hstepQ:Assertionσ:Stateσ':Stateh:Q σhstep:BigStep σ Stmt.skip σ'⊢ Q σ'
  cases hstepskipQ:Assertionσ:Stateh:Q σ⊢ Q σ
  exact hAll goals completed! 🐙

theorem Triple.assign (Q : Assertion) (x : String) (e : Expr) :
    Triple (fun σ => Q (σ.set x (e.eval σ))) (.assign x e) Q := byQ:Assertionx:Stringe:Expr⊢ Triple (fun σ => Q (σ.set x (Expr.eval σ e))) (Stmt.assign x e) Q
  intro σ σ' h hstepQ:Assertionx:Stringe:Exprσ:Stateσ':Stateh:Q (σ.set x (Expr.eval σ e))hstep:BigStep σ (Stmt.assign x e) σ'⊢ Q σ'
  cases hstepassignQ:Assertionx:Stringe:Exprσ:Stateh:Q (σ.set x (Expr.eval σ e))⊢ Q (σ.set x (Expr.eval σ e))
  exact hAll goals completed! 🐙

theorem Triple.consequence (h : Triple P s Q)
    (hpre : ∀ σ, P' σ → P σ) (hpost : ∀ σ, Q σ → Q' σ) :
    Triple P' s Q' := byP:Assertions:StmtQ:AssertionP':AssertionQ':Assertionh:Triple P s Qhpre:∀ (σ : State), P' σ → P σhpost:∀ (σ : State), Q σ → Q' σ⊢ Triple P' s Q'
  intro σ σ' hP' hstepP:Assertions:StmtQ:AssertionP':AssertionQ':Assertionh:Triple P s Qhpre:∀ (σ : State), P' σ → P σhpost:∀ (σ : State), Q σ → Q' σσ:Stateσ':StatehP':P' σhstep:BigStep σ s σ'⊢ Q' σ'
  exact hpost _ (h _ _ (hpre _ hP') hstep)All goals completed! 🐙

Proof method: unfold Triple, invert the derivation with cases — for a fixed statement shape, only matching BigStep constructors apply.
consequence is the structural rule: weaken the precondition, strengthen the postcondition.
The assignment rule pushes the postcondition backwards through the update — nothing is computed forwards.

Applying the Assignment Rule

example (a : Int) :
    Triple (fun σ => σ⟦x⟧ = a)
      (.assign "y" (.const 0))
      (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = 0) := bya:Int⊢ Triple (fun σ => σ⟦x⟧ = a) ([Imp|y := 0; ]) fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = 0
  apply Triple.assigna:Int⊢ Triple (fun σ => σ⟦x⟧ = a) ([Imp|y := 0; ]) fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = 0Tactic `apply` failed: could not unify the conclusion of `Triple.assign`
  Triple (fun σ => ?Q (σ.set ?x (Expr.eval σ ?e))) (Stmt.assign ?x ?e) ?Q
with the goal
  Triple (fun σ => σ⟦x⟧ = a) ([Imp|y := 0; ]) fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = 0

Note: The full type of `Triple.assign` is
  ∀ (Q : Assertion) (x : String) (e : Expr), Triple (fun σ => Q (σ.set x (Expr.eval σ e))) (Stmt.assign x e) Q

a:Int⊢ Triple (fun σ => σ⟦x⟧ = a) ([Imp|y := 0; ]) fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = 0

theorem Triple.assign' (P Q : Assertion) (x : String) (e : Expr) :
    (∀ σ, P σ → Q (σ.set x (e.eval σ))) →
    Triple P (.assign x e) Q :=
  fun h => Triple.consequence (Triple.assign Q x e) h (fun _ h => h)

Triple.assign's precondition has a fixed shape — the postcondition pushed through the update. An arbitrary precondition does not unify with it, so apply fails.
Triple.assign' fuses assign with consequence — the proof term is the combination. It applies to any pre/postcondition, leaving an ordinary implication.
The design rule: theorems meant for apply must be stated for arbitrary goals.

Sequencing Without Metavariables

theorem Triple.seq (h₁ : Triple P s₁ R) (h₂ : Triple R s₂ Q) :
    Triple P (.seq s₁ s₂) Q := byP:Assertions₁:StmtR:Assertions₂:StmtQ:Assertionh₁:Triple P s₁ Rh₂:Triple R s₂ Q⊢ Triple P (s₁.seq s₂) Q
  intro σ σ' hP hstepP:Assertions₁:StmtR:Assertions₂:StmtQ:Assertionh₁:Triple P s₁ Rh₂:Triple R s₂ Qσ:Stateσ':StatehP:P σhstep:BigStep σ (s₁.seq s₂) σ'⊢ Q σ'
  cases hstep with
  | seq hs₁ hs₂ =>seqP:Assertions₁:StmtR:Assertions₂:StmtQ:Assertionh₁:Triple P s₁ Rh₂:Triple R s₂ Qσ:Stateσ':StatehP:P σσ'✝:Statehs₁:BigStep σ s₁ σ'✝hs₂:BigStep σ'✝ s₂ σ'⊢ Q σ' exact h₂ _ _ (h₁ _ _ hP hs₁) hs₂All goals completed! 🐙

theorem Triple.seq' :
    Triple P s₁ (fun σ => Triple (· = σ) s₂ Q) →
    Triple P (.seq s₁ s₂) Q := byP:Assertions₁:Stmts₂:StmtQ:Assertion⊢ (Triple P s₁ fun σ => Triple (fun x => x = σ) s₂ Q) → Triple P (s₁.seq s₂) Q
  intro h₁ σ₁ σ₃ hp hbP:Assertions₁:Stmts₂:StmtQ:Assertionh₁:Triple P s₁ fun σ => Triple (fun x => x = σ) s₂ Qσ₁:Stateσ₃:Statehp:P σ₁hb:BigStep σ₁ (s₁.seq s₂) σ₃⊢ Q σ₃
  cases hbseqP:Assertions₁:Stmts₂:StmtQ:Assertionh₁:Triple P s₁ fun σ => Triple (fun x => x = σ) s₂ Qσ₁:Stateσ₃:Statehp:P σ₁σ'✝:Stateh₁✝:BigStep σ₁ s₁ σ'✝h₂✝:BigStep σ'✝ s₂ σ₃⊢ Q σ₃
  next σ₂ h₂ h₃ =>P:Assertions₁:Stmts₂:StmtQ:Assertionh₁:Triple P s₁ fun σ => Triple (fun x => x = σ) s₂ Qσ₁:Stateσ₃:Statehp:P σ₁σ₂:Stateh₂:BigStep σ₁ s₁ σ'✝h₃:BigStep σ'✝ s₂ σ₃⊢ Q σ₃ exact h₁ σ₁ σ₂ hp h₂ σ₂ σ₃ rfl h₃All goals completed! 🐙

Applying seq invents a metavariable for the intermediate assertion R, shared by two goals — filling it falls to unification and elaboration order.
seq' produces one goal and no metavariables: its postcondition is definitionally s₂.wlp Q — the safe region of s₂, from the Triples slide.
Intermediate states later enter as intro-bound variables, not holes.

The While Rule

theorem Triple.whileDo {inv : Assertion}
    (h : Triple (fun σ => I σ ∧ c.eval σ = true) body I) :
    Triple I (.whileDo c inv body) (fun σ => I σ ∧ c.eval σ = false) := byI:Assertionbody:Stmtc:BExprinv:Assertionh:Triple (fun σ => I σ ∧ BExpr.eval σ c = true) body I⊢ Triple I (Stmt.whileDo c inv body) fun σ => I σ ∧ BExpr.eval σ c = false
  intro σ σ' hI hstepI:Assertionbody:Stmtc:BExprinv:Assertionh:Triple (fun σ => I σ ∧ BExpr.eval σ c = true) body Iσ:Stateσ':StatehI:I σhstep:BigStep σ (Stmt.whileDo c inv body) σ'⊢ I σ' ∧ BExpr.eval σ' c = false
  exact Triple.whileDo_aux h hstep rfl hIAll goals completed! 🐙

theorem Triple.whileDo' {inv : Assertion}
    (hpre : ∀ σ, P σ → inv σ)
    (hbody : Triple (fun σ => inv σ ∧ c.eval σ = true) body inv)
    (hpost : ∀ σ, inv σ → c.eval σ = false → Q σ) :
    Triple P (.whileDo c inv body) Q :=
  Triple.consequence (Triple.whileDo hbody) hpre (fun σ h => hpost σ h.1 h.2)

The proof of whileDo needs the technique from Lecture 2: generalize the statement before inducting on the derivation.
whileDo ignores its annotation (it has no semantic role), and its fixed shape blocks apply — the assignment story again.
Triple.whileDo' fuses it with consequence and takes the invariant from the annotation: it applies to any goal, with no metavariable — and its three premises are entry, preservation, and exit: the loop's verification conditions, before we ever define vc.

A First Verified Program

def swapProg := [Imp|
  t := x;
  x := y;
  y := t;
]

theorem swap_correct (a b : Int) :
    Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b)
      swapProg
      (fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a) := bya:Intb:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b) swapProg fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  have h := (Triple.assign _ "t" (.var "x")).seq
    ((Triple.assign _ "x" (.var "y")).seq
      (Triple.assign (fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a) "y" (.var "t")))a:Intb:Inth:Triple
  (fun σ =>
    σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦x⟧ =
        b ∧
      σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦y⟧ =
        a)
  ([Imp|t := x; x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a⊢ Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b) swapProg fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  refine Triple.consequence h ?_ (fun _ h => h)a:Intb:Inth:Triple
  (fun σ =>
    σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦x⟧ =
        b ∧
      σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦y⟧ =
        a)
  ([Imp|t := x; x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a⊢ ∀ (σ : State),
  σ⟦x⟧ = a ∧ σ⟦y⟧ = b →
    σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦x⟧ =
        b ∧
      σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦y⟧ =
        a
  intro σ hσa:Intb:Inth:Triple
  (fun σ =>
    σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦x⟧ =
        b ∧
      σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦y⟧ =
        a)
  ([Imp|t := x; x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = aσ:Statehσ:σ⟦x⟧ = a ∧ σ⟦y⟧ = b⊢ σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
        Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦x⟧ =
    b ∧
  σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
        Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦y⟧ =
    a
  simp only [Expr.eval]a:Intb:Inth:Triple
  (fun σ =>
    σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦x⟧ =
        b ∧
      σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧⟦y :=
            Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧⟦x := Expr.eval σ⟦t := Expr.eval σ [Expr|x]⟧ [Expr|y]⟧ [Expr|t]⟧⟦y⟧ =
        a)
  ([Imp|t := x; x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = aσ:Statehσ:σ⟦x⟧ = a ∧ σ⟦y⟧ = b⊢ σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦y := σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦t⟧⟧⟦x⟧ = b ∧
  σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦y := σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦t⟧⟧⟦y⟧ = a
  grindAll goals completed! 🐙

Compose the rules backwards from the postcondition; consequence closes the gap to the specification; grind handles the state bookkeeping with the two [grind =] lemmas from Lecture 3.
Correct, but manual — one rule application per statement.

Stepping Through the Program

theorem swap_correct' (a b : Int) :
    Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b)
      swapProg
      (fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a) := bya:Intb:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b) swapProg fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  unfold swapProga:Intb:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b) ([Imp|t := x; x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  apply Triple.seq'a:Intb:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b) ([Imp|t := x; ]) fun σ =>
  Triple (fun x => x = σ) ([Imp|x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  apply Triple.assign'a:Intb:Int⊢ ∀ (σ : State),
  σ⟦x⟧ = a ∧ σ⟦y⟧ = b →
    Triple (fun x => x = σ⟦t := Expr.eval σ [Expr|x]⟧) ([Imp|x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  intro σ₁ h₁a:Intb:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ σ₁⟦y⟧ = b⊢ Triple (fun x => x = σ₁⟦t := Expr.eval σ₁ [Expr|x]⟧) ([Imp|x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  apply Triple.seq'a:Intb:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ σ₁⟦y⟧ = b⊢ Triple (fun x => x = σ₁⟦t := Expr.eval σ₁ [Expr|x]⟧) ([Imp|x := y; ]) fun σ =>
  Triple (fun x => x = σ) ([Imp|y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  apply Triple.assign'a:Intb:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ σ₁⟦y⟧ = b⊢ ∀ (σ : State),
  σ = σ₁⟦t := Expr.eval σ₁ [Expr|x]⟧ →
    Triple (fun x => x = σ⟦x := Expr.eval σ [Expr|y]⟧) ([Imp|y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  intro σ₂ h₂a:Intb:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ σ₁⟦y⟧ = bσ₂:Stateh₂:σ₂ = σ₁⟦t := Expr.eval σ₁ [Expr|x]⟧⊢ Triple (fun x => x = σ₂⟦x := Expr.eval σ₂ [Expr|y]⟧) ([Imp|y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  apply Triple.assign'a:Intb:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ σ₁⟦y⟧ = bσ₂:Stateh₂:σ₂ = σ₁⟦t := Expr.eval σ₁ [Expr|x]⟧⊢ ∀ (σ : State),
  σ = σ₂⟦x := Expr.eval σ₂ [Expr|y]⟧ → σ⟦y := Expr.eval σ [Expr|t]⟧⟦x⟧ = b ∧ σ⟦y := Expr.eval σ [Expr|t]⟧⟦y⟧ = a
  intro σ₃ h₃a:Intb:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ σ₁⟦y⟧ = bσ₂:Stateh₂:σ₂ = σ₁⟦t := Expr.eval σ₁ [Expr|x]⟧σ₃:Stateh₃:σ₃ = σ₂⟦x := Expr.eval σ₂ [Expr|y]⟧⊢ σ₃⟦y := Expr.eval σ₃ [Expr|t]⟧⟦x⟧ = b ∧ σ₃⟦y := Expr.eval σ₃ [Expr|t]⟧⟦y⟧ = a
  simp [Expr.eval] at *a:Intb:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ σ₁⟦y⟧ = bσ₂:Stateh₂:σ₂ = σ₁⟦t := σ₁⟦x⟧⟧σ₃:Stateh₃:σ₃ = σ₂⟦x := σ₂⟦y⟧⟧⊢ σ₃⟦y := σ₃⟦t⟧⟧⟦x⟧ = b ∧ σ₃⟦y := σ₃⟦t⟧⟧⟦y⟧ = a
  grindAll goals completed! 🐙

Only the apply-friendly rules appear: seq' (no metavariables) and assign' (any precondition) — the design from the previous slides, in action.
The proof follows the structure of the program, one rule application per statement, receiving each intermediate state with intro — symbolic execution, in the deep embedding.
This style returns twice today: in the shallow embedding, and in SymM, whose benchmark drives exactly this seq' rule.

The Precondition Transformer

def Stmt.pre : Stmt → Assertion → Assertion
  | .skip, Q => Q
  | .assign x e, Q => fun σ => Q (σ.set x (e.eval σ))
  | .seq s₁ s₂, Q => s₁.pre (s₂.pre Q)
  | .ite c s₁ s₂, Q => fun σ => if c.eval σ then s₁.pre Q σ else s₂.pre Q σ
  | .whileDo _ inv _, _ => inv

The backwards composition of swap_correct, as a function — and a loop's precondition is its annotated invariant: the annotation we built into Stmt finally does its job.
This is the textbook construction: Nipkow & Klein, Concrete Semantics, §12.2.2 defines pre and vc (same names) over annotated commands; Gordon's Hoare-logic notes (ch. 3) and Software Foundations (Hoare2) present the same generator.

The Verification Conditions

def Stmt.vc : Stmt → Assertion → Prop
  | .skip, _ => True
  | .assign _ _, _ => True
  | .seq s₁ s₂, Q => s₁.vc (s₂.pre Q) ∧ s₂.vc Q
  | .ite _ s₁ s₂, Q => s₁.vc Q ∧ s₂.vc Q
  | .whileDo c inv body, Q =>
    (∀ σ, inv σ → c.eval σ = true → body.pre inv σ) ∧
    (∀ σ, inv σ → c.eval σ = false → Q σ) ∧
    body.vc inv

vc collects what remains to be proved: for each loop, preservation of its invariant and the exit implication; skip and assign contribute nothing.
On loop-free programs vc is a conjunction of Trues — no proof obligations at all; pre alone carries the meaning.

The Soundness Theorem

#checkvcgen_sound (s : Stmt) (Q : Assertion) (h : s.vc Q) : Triple (s.pre Q) s Q vcgen_sound
vcgen_sound (s : Stmt) (Q : Assertion) (h : s.vc Q) : Triple (s.pre Q) s Q
theorem Stmt.verify (s : Stmt) (P Q : Assertion)
    (hvc : s.vc Q) (hpre : ∀ σ, P σ → s.pre Q σ) : Triple P s Q :=
  Triple.consequence (vcgen_sound s Q hvc) hpre (fun _ h => h)

vcgen_sound: discharge the VCs and the triple holds. Proved by induction; the loop case is Triple.whileDo' applied to the induction hypothesis.

`swap`, Revisited

macro "vcg" : tactic => `(tactic|
  apply Stmt.verify <;>
    try simp [Stmt.vc, Stmt.pre, Expr.eval, BExpr.eval])

example (a b : Int) :
    Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b)
      swapProg
      (fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a) := bya:Intb:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b) swapProg fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  unfold swapProga:Intb:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ σ⟦y⟧ = b) ([Imp|t := x; x := y; y := t; ]) fun σ => σ⟦x⟧ = b ∧ σ⟦y⟧ = a
  vcghprea:Intb:Int⊢ ∀ (σ : State),
  σ⟦x⟧ = a →
    σ⟦y⟧ = b →
      σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦y := σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦t⟧⟧⟦x⟧ = b ∧
        σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦y := σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦t⟧⟧⟦y⟧ = a <;>hprea:Intb:Int⊢ ∀ (σ : State),
  σ⟦x⟧ = a →
    σ⟦y⟧ = b →
      σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦y := σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦t⟧⟧⟦x⟧ = b ∧
        σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦y := σ⟦t := σ⟦x⟧⟧⟦x := σ⟦t := σ⟦x⟧⟧⟦y⟧⟧⟦t⟧⟧⟦y⟧ = a grindAll goals completed! 🐙

vcg is a two-line tactic macro: apply Stmt.verify, then unfold the computed vc and pre. swap is loop-free, so no verification conditions survive; the one remaining goal is the entailment between specification and computed precondition — grind discharges it.
On the loop-free fragment, pre computes Dijkstra's weakest liberal precondition — weakest provably, not just by name (exercise extension); liberal means partial correctness, where Dijkstra's wp additionally requires termination.
On loops, pre returns the annotation: sound, but only as weak as the invariant you wrote. Finding invariants is the creative step.

A Loop, Verified

def copyProg (a : Int) := [Imp|
  y := 0;
  while (0 < x) invariant (fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧) {
    x := x - 1;
    y := y + 1;
  }
]

theorem copy_correct (a : Int) :
    Triple (fun σ => σ⟦x⟧ = a ∧ 0 ≤ a)
      (copyProg a)
      (fun σ => σ⟦y⟧ = a) := bya:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ 0 ≤ a) (copyProg a) fun σ => σ⟦y⟧ = a
  unfold copyProga:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ 0 ≤ a)
  ([Imp|y := 0; while (0 < x) invariant (fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧)
       {x := x - 1; y := y + 1; }])
  fun σ => σ⟦y⟧ = a
  vcghvca:Int⊢ (∀ (σ : State),
    σ⟦x⟧ + σ⟦y⟧ = a →
      0 ≤ σ⟦x⟧ →
        decide (0 < σ⟦x⟧) = true →
          σ⟦x := σ⟦x⟧ - 1⟧⟦y := σ⟦x := σ⟦x⟧ - 1⟧⟦y⟧ + 1⟧⟦x⟧ + σ⟦x := σ⟦x⟧ - 1⟧⟦y := σ⟦x := σ⟦x⟧ - 1⟧⟦y⟧ + 1⟧⟦y⟧ = a ∧
            0 ≤ σ⟦x := σ⟦x⟧ - 1⟧⟦y := σ⟦x := σ⟦x⟧ - 1⟧⟦y⟧ + 1⟧⟦x⟧) ∧
  ∀ (σ : State), σ⟦x⟧ + σ⟦y⟧ = a → 0 ≤ σ⟦x⟧ → decide (0 < σ⟦x⟧) = false → σ⟦y⟧ = ahprea:Int⊢ ∀ (σ : State), σ⟦x⟧ = a → 0 ≤ a → σ⟦y := 0⟧⟦x⟧ + σ⟦y := 0⟧⟦y⟧ = a ∧ 0 ≤ σ⟦y := 0⟧⟦x⟧ <;>hvca:Int⊢ (∀ (σ : State),
    σ⟦x⟧ + σ⟦y⟧ = a →
      0 ≤ σ⟦x⟧ →
        decide (0 < σ⟦x⟧) = true →
          σ⟦x := σ⟦x⟧ - 1⟧⟦y := σ⟦x := σ⟦x⟧ - 1⟧⟦y⟧ + 1⟧⟦x⟧ + σ⟦x := σ⟦x⟧ - 1⟧⟦y := σ⟦x := σ⟦x⟧ - 1⟧⟦y⟧ + 1⟧⟦y⟧ = a ∧
            0 ≤ σ⟦x := σ⟦x⟧ - 1⟧⟦y := σ⟦x := σ⟦x⟧ - 1⟧⟦y⟧ + 1⟧⟦x⟧) ∧
  ∀ (σ : State), σ⟦x⟧ + σ⟦y⟧ = a → 0 ≤ σ⟦x⟧ → decide (0 < σ⟦x⟧) = false → σ⟦y⟧ = ahprea:Int⊢ ∀ (σ : State), σ⟦x⟧ = a → 0 ≤ a → σ⟦y := 0⟧⟦x⟧ + σ⟦y := 0⟧⟦y⟧ = a ∧ 0 ≤ σ⟦y := 0⟧⟦x⟧ grindAll goals completed! 🐙

The same vcg <;> grind as for swap — but this time obligations survive: the loop's verification conditions. grind discharges them — state bookkeeping by E-matching, arithmetic by cutsat.
Choosing the invariant is the only creative step.

Stepping Through the Loop

theorem copy_correct' (a : Int) :
    Triple (fun σ => σ⟦x⟧ = a ∧ 0 ≤ a)
      (copyProg a)
      (fun σ => σ⟦y⟧ = a) := bya:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ 0 ≤ a) (copyProg a) fun σ => σ⟦y⟧ = a
  unfold copyProga:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ 0 ≤ a)
  ([Imp|y := 0; while (0 < x) invariant (fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧)
       {x := x - 1; y := y + 1; }])
  fun σ => σ⟦y⟧ = a
  apply Triple.seq'a:Int⊢ Triple (fun σ => σ⟦x⟧ = a ∧ 0 ≤ a) ([Imp|y := 0; ]) fun σ =>
  Triple (fun x => x = σ)
    ([Imp|while (0 < x) invariant (fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧)
         {x := x - 1; y := y + 1; }])
    fun σ => σ⟦y⟧ = a
  apply Triple.assign'a:Int⊢ ∀ (σ : State),
  σ⟦x⟧ = a ∧ 0 ≤ a →
    Triple (fun x => x = σ⟦y := Expr.eval σ [Expr|0]⟧)
      ([Imp|while (0 < x) invariant (fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧)
           {x := x - 1; y := y + 1; }])
      fun σ => σ⟦y⟧ = a
  intro σ₁ h₁a:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ Triple (fun x => x = σ₁⟦y := Expr.eval σ₁ [Expr|0]⟧)
  ([Imp|while (0 < x) invariant (fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧)
       {x := x - 1; y := y + 1; }])
  fun σ => σ⟦y⟧ = a
  apply Triple.whileDo'hprea:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ ∀ (σ : State), σ = σ₁⟦y := Expr.eval σ₁ [Expr|0]⟧ → σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ Triple (fun σ => (σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧) ∧ BExpr.eval σ [BExpr|0 < x] = true) ([Imp|x := x - 1; y := y + 1; ])
  fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧hposta:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ ∀ (σ : State), σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧ → BExpr.eval σ [BExpr|0 < x] = false → σ⟦y⟧ = a
  ·hprea:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ ∀ (σ : State), σ = σ₁⟦y := Expr.eval σ₁ [Expr|0]⟧ → σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧ intro σ hhprea:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ:Stateh:σ = σ₁⟦y := Expr.eval σ₁ [Expr|0]⟧⊢ σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧
    simp [Expr.eval] at *hprea:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ:Stateh:σ = σ₁⟦y := 0⟧⊢ σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧
    grindAll goals completed! 🐙
  ·hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ Triple (fun σ => (σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧) ∧ BExpr.eval σ [BExpr|0 < x] = true) ([Imp|x := x - 1; y := y + 1; ])
  fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧ apply Triple.seq'hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ Triple (fun σ => (σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧) ∧ BExpr.eval σ [BExpr|0 < x] = true) ([Imp|x := x - 1; ]) fun σ =>
  Triple (fun x => x = σ) ([Imp|y := y + 1; ]) fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧
    apply Triple.assign'hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ ∀ (σ : State),
  (σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧) ∧ BExpr.eval σ [BExpr|0 < x] = true →
    Triple (fun x => x = σ⟦x := Expr.eval σ [Expr|x - 1]⟧) ([Imp|y := y + 1; ]) fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧
    intro σ₂ h₂hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ₂:Stateh₂:(σ₂⟦x⟧ + σ₂⟦y⟧ = a ∧ 0 ≤ σ₂⟦x⟧) ∧ BExpr.eval σ₂ [BExpr|0 < x] = true⊢ Triple (fun x => x = σ₂⟦x := Expr.eval σ₂ [Expr|x - 1]⟧) ([Imp|y := y + 1; ]) fun σ => σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧
    apply Triple.assign'hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ₂:Stateh₂:(σ₂⟦x⟧ + σ₂⟦y⟧ = a ∧ 0 ≤ σ₂⟦x⟧) ∧ BExpr.eval σ₂ [BExpr|0 < x] = true⊢ ∀ (σ : State),
  σ = σ₂⟦x := Expr.eval σ₂ [Expr|x - 1]⟧ →
    σ⟦y := Expr.eval σ [Expr|y + 1]⟧⟦x⟧ + σ⟦y := Expr.eval σ [Expr|y + 1]⟧⟦y⟧ = a ∧
      0 ≤ σ⟦y := Expr.eval σ [Expr|y + 1]⟧⟦x⟧
    intro σ₃ h₃hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ₂:Stateh₂:(σ₂⟦x⟧ + σ₂⟦y⟧ = a ∧ 0 ≤ σ₂⟦x⟧) ∧ BExpr.eval σ₂ [BExpr|0 < x] = trueσ₃:Stateh₃:σ₃ = σ₂⟦x := Expr.eval σ₂ [Expr|x - 1]⟧⊢ σ₃⟦y := Expr.eval σ₃ [Expr|y + 1]⟧⟦x⟧ + σ₃⟦y := Expr.eval σ₃ [Expr|y + 1]⟧⟦y⟧ = a ∧
  0 ≤ σ₃⟦y := Expr.eval σ₃ [Expr|y + 1]⟧⟦x⟧
    simp [Expr.eval, BExpr.eval] at *hbodya:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ₂:Stateh₂:(σ₂⟦x⟧ + σ₂⟦y⟧ = a ∧ 0 ≤ σ₂⟦x⟧) ∧ decide (0 < σ₂⟦x⟧) = trueσ₃:Stateh₃:σ₃ = σ₂⟦x := σ₂⟦x⟧ - 1⟧⊢ σ₃⟦y := σ₃⟦y⟧ + 1⟧⟦x⟧ + σ₃⟦y := σ₃⟦y⟧ + 1⟧⟦y⟧ = a ∧ 0 ≤ σ₃⟦y := σ₃⟦y⟧ + 1⟧⟦x⟧
    grindAll goals completed! 🐙
  ·hposta:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ a⊢ ∀ (σ : State), σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧ → BExpr.eval σ [BExpr|0 < x] = false → σ⟦y⟧ = a intro σ hI hchposta:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ:StatehI:σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧hc:BExpr.eval σ [BExpr|0 < x] = false⊢ σ⟦y⟧ = a
    simp [BExpr.eval, Expr.eval] at hchposta:Intσ₁:Stateh₁:σ₁⟦x⟧ = a ∧ 0 ≤ aσ:StatehI:σ⟦x⟧ + σ⟦y⟧ = a ∧ 0 ≤ σ⟦x⟧hc:decide (0 < σ⟦x⟧) = false⊢ σ⟦y⟧ = a
    grindAll goals completed! 🐙

Shallow Embeddings

Removing the object language.

Programs as Lean Programs

def Triple (P : S → Prop) (k : StateM S α) (Q : α → S → Prop) : Prop :=
  ∀ s, P s → Q (k s).1 (k s).2

def double : StateM Nat Unit := do
  let s ← get
  set (s + s)

Imp was a deep embedding: programs are data, semantics is a relation. Shallow alternative: programs are ordinary monadic Lean code in Lecture 2's StateM — the style of mvcgen, Velvet, and Aeneas.
The judgment is the same Hoare triple; only the semantics changed. A StateM program is a function, so "every terminating run" is the run: quantifying over BigStep σ s σ' becomes running the program — (k s).1 the returned value, (k s).2 the final state.
No inductive semantics needed, and partial and total correctness coincide (StateM programs are total and deterministic).

One Rule per Construct

theorem Triple.get (h : ∀ s, P s → Q s s) : Triple P get Q := byS✝:Type u_1P:S✝ → PropQ:S✝ → S✝ → Proph:∀ (s : S✝), P s → Q s s⊢ Triple P MonadState.get Q
  intro s hPS✝:Type u_1P:S✝ → PropQ:S✝ → S✝ → Proph:∀ (s : S✝), P s → Q s ss:S✝hP:P s⊢ Q (MonadState.get s).fst (MonadState.get s).snd
  simp [MonadState.get, getThe, MonadStateOf.get, StateT.get, Pure.pure]S✝:Type u_1P:S✝ → PropQ:S✝ → S✝ → Proph:∀ (s : S✝), P s → Q s ss:S✝hP:P s⊢ Q s s
  exact h _ hPAll goals completed! 🐙

theorem Triple.bind (k₁ : StateM S α) (k₂ : α → StateM S β)
    (Q : β → S → Prop)
    (h : Triple P k₁ (fun a s => Triple (· = s) (k₂ a) Q)) : Triple P (k₁ >>= k₂) Q := byS:Type u_1α:Type u_1β:Type u_1P:S → Propk₁:StateM S αk₂:α → StateM S βQ:β → S → Proph:Triple P k₁ fun a s => Triple (fun x => x = s) (k₂ a) Q⊢ Triple P (k₁ >>= k₂) Q
  intro s hPS:Type u_1α:Type u_1β:Type u_1P:S → Propk₁:StateM S αk₂:α → StateM S βQ:β → S → Proph:Triple P k₁ fun a s => Triple (fun x => x = s) (k₂ a) Qs:ShP:P s⊢ Q ((k₁ >>= k₂) s).fst ((k₁ >>= k₂) s).snd
  exact h s hP (k₁ s).2 rflAll goals completed! 🐙

Part A's design carries over verbatim: every rule is primed — arbitrary P, no metavariables. Triple.get has the shape of assign'; Triple.bind is seq', with the result value a passed to the continuation.
The proofs are all simple.
Rules for pure, set, modify, ite, and consequence complete the set.

Symbolic Execution by `apply`

example (a : Nat) : Triple (· = a) double (fun _ s => s = 2 * a) := bya:Nat⊢ Triple (fun x => x = a) double fun x s => s = 2 * a
  unfold doublea:Nat⊢ Triple (fun x => x = a)
  (do
    let s ← get
    set (s + s))
  fun x s => s = 2 * a
  apply Triple.binda:Nat⊢ Triple (fun x => x = a) get fun a_1 s => Triple (fun x => x = s) (set (a_1 + a_1)) fun x s => s = 2 * a
  apply Triple.geta:Nat⊢ ∀ (s : Nat), s = a → Triple (fun x => x = s) (set (s + s)) fun x s => s = 2 * a
  intro s ha:Nats:Nath:s = a⊢ Triple (fun x => x = s) (set (s + s)) fun x s => s = 2 * a
  apply Triple.seta:Nats:Nath:s = a⊢ ∀ (s_1 : Nat), s_1 = s → s + s = 2 * a
  intro s' h'a:Nats:Nath:s = as':Nath':s' = s⊢ s + s = 2 * a
  grindAll goals completed! 🐙

The same stepping discipline as swap and copyProg in part A: apply the rule for the head of the program, intro the reached state.
The final goal is the verification condition s + s = 2 * a, with h : s = a in context.
Entirely mechanical — the rule is determined by the head of the program.

A Metaprogram: Dispatch on the Head

open Lean Elab Tactic in
elab "sym_step" : tactic => do
  let goal ← getMainGoal
  let tgt ← goal.withContext do instantiateMVars (← goal.getType)
  let_expr Triple _ _ _ k _ := tgt.headBeta
    | throwError "sym_step: not a `Triple` goal"
  let app (r : Name) : TacticM Unit := do
    evalTactic (← `(tactic| apply $(mkIdent r) <;> intro _ _))
  match k.getAppFn.constName? with
  | some ``Bind.bind => evalTactic (← `(tactic| apply Triple.bind))
  | some ``get       => app ``Triple.get
  | some ``set       => app ``Triple.set
  | some ``modify    => app ``Triple.modify
  | some ``pure      => app ``Triple.pure
  | some ``ite       => evalTactic (← `(tactic| apply Triple.ite <;> intro _))
  | _ => throwError "sym_step: no rule for{indentExpr k}"

macro "sym_run" : tactic => `(tactic| repeat' sym_step)

A tactic is a Lean program: read the goal, inspect the head, apply the matching rule — twenty lines. (Trying the rules blindly with apply would send the unifier unfolding >>= and StateT; dispatching on the head avoids the search.)
This is the metaprogramming promised in the abstract, in its smallest useful form.

Recursion Becomes Induction

def addN : Nat → StateM Nat Unit
  | 0 => pure ()
  | n + 1 => do
    modify (· + 1)
    addN n

theorem addN_correct (n : Nat) (a : Nat) :
    Triple (· = a) (addN n) (fun _ s' => s' = a + n) := byn:Nata:Nat⊢ Triple (fun x => x = a) (addN n) fun x s' => s' = a + n
  induction n generalizing a with
  | zero =>zeroa:Nat⊢ Triple (fun x => x = a) (addN 0) fun x s' => s' = a + 0 simp only [addN]zeroa:Nat⊢ Triple (fun x => x = a) (pure ()) fun x s' => s' = a + 0; sym_runzeroa:Nats✝:Nata✝:s✝ = a⊢ s✝ = a + 0; grindAll goals completed! 🐙
  | succ n ih =>succn:Natih:∀ (a : Nat), Triple (fun x => x = a) (addN n) fun x s' => s' = a + na:Nat⊢ Triple (fun x => x = a) (addN (n + 1)) fun x s' => s' = a + (n + 1)
    simp only [addN]succn:Natih:∀ (a : Nat), Triple (fun x => x = a) (addN n) fun x s' => s' = a + na:Nat⊢ Triple (fun x => x = a)
  (do
    modify fun x => x + 1
    addN n)
  fun x s' => s' = a + (n + 1)
    sym_runsuccn:Natih:∀ (a : Nat), Triple (fun x => x = a) (addN n) fun x s' => s' = a + na:Nats✝:Nata✝:s✝ = a⊢ Triple (fun x => x = s✝ + 1) (addN n) fun x s' => s' = a + (n + 1)
    exact Triple.consequence (ih _) (fun _ h => h) (byn:Natih:∀ (a : Nat), Triple (fun x => x = a) (addN n) fun x s' => s' = a + na:Nats✝:Nata✝:s✝ = a⊢ ∀ (a_1 : Unit) (s : Nat), s = s✝ + 1 + n → s = a + (n + 1) grindAll goals completed! 🐙)

sym_run executes up to the recursive call; the induction hypothesis plays the role of the loop invariant. generalizing a — Lecture 2's lesson, again: the recursive call starts from a different state.
Triple.consequence bridges the induction hypothesis to the goal, the same role it played in part A.

Scalability

VC Generation in Practice

A VC generator turns code and specifications into proof obligations. Lean-based examples of the idiom we just built:

Aeneas — Rust verification via translation to Lean.
Velvet — a Dafny-style verifier built in Lean.
mvcgen — Lean's VC generator for monadic programs.

VC pipeline: code and specification into VC generator, proof obligations, tactics, kernel

Verification condition generation with proof assistants has historically not scaled — documented for Rocq by Chlipala's group, and the same held in Lean.

A Minimal Scaling Benchmark

Andres Erbsen (Google; Bedrock2, Fiat Cryptography) distilled the problem into a minimal challenge at the Lean@Google hackathon: symbolically execute a generated n-step program — the apply/simp loop from this lecture, at size n.

Andres' challenge: tactic time by goal size

With Lean's general-purpose tactic framework (MetaM): superlinear — 2073 ms at n = 100, failure before n = 700.

Where the Time Goes

The symbolic execution loop needs:

efficient apply — no unification search (the reason sym_step dispatches on the head);
efficient metavariable management;
term sharing preserved by every operation — no copied trees;
simplifier results cached and reused across obligations and steps;
no repeated traversal of the same subterms.

General-purpose tactic frameworks pay for flexibility these loops do not need — arbitrary proof-state surgery, full definitional unfolding in matching.

`SymM`

A monadic framework for symbolic simulation and VC generation, in the Lean sources.

The key invariant: the local context grows monotonically — no reverts, no deletions. Then pointer equality is a valid cache key, and automation state survives from one VC to the next.
Precompiled backward rules; mostly-syntactic matching in the hot path.
A new simplifier: pointer-keyed caches on maximally shared terms, binder traversal without quadratic cost.
grind state threaded through the VC loop: facts learned once are reused across obligations.

`SymM`: Measurements

MetaM vs SymM tactic time

SymM with simplifier cache reuse

On the benchmark above: 16 ms at n = 100 (vs. 2073 ms) — about 100×; linear out to n = 700.

Ported Frameworks

mvcgen tactic time

mvcgen kernel time

mvcgen (Sebastian Graf): linear out to n = 1000 on the challenge.
Velvet (V. Gladshtein): previously ~3× slower than Dafny; after the port, faster on 24 of 27 benchmarks. Dafny trusts its VC generator and an SMT solver; Velvet's chain is checked by the kernel.
DyLean (T. Wallez, cryptographic protocols): SymM + incremental grind gave a 50× speedup in VC discharge.

The Course, in Summary

Foundations: dependent type theory; propositions as types; the kernel as the single arbiter.
Programming and proving: inductive types, type classes, macros; design lemmas so proofs follow definitions.
Automation: simp, grind, bv_decide — inspectable, extensible, kernel-checked; AI as a user of the same machinery.
Verification: Hoare logic as theorems, VC generation as a verified function, symbolic execution as a metaprogram, and the engineering that scales it — all inside Lean: one kernel checks programs, specifications, proofs, and the verifier itself.

Where to Go from Here

Exercises: Lecture4.lean (the VC generator) and Lecture4b.lean (shallow embedding + sym_step) — both with full solutions and notes.
Theorem Proving in Lean 4 · Functional Programming in Lean · the reference manual
CSLib — a growing library of computer science foundations; contributions welcome.
Mathlib — the mathematical library.
Iris Lean — concurrent separation logic, being ported to Lean.
Software Foundations in Lean
Lean Zulip

Material: https://github.com/leodemoura/Marktoberdorf2026

Thank You

Leo de Moura
lean-lang.org
leanprover.zulipchat.com

leodemoura.github.io
